Territory Quarry

The excavations of a quarry supply the materials used for many building applications. Cemintel Territory™ Quarry evokes the raw, unpretentious, malleable and functional properties of these materials.

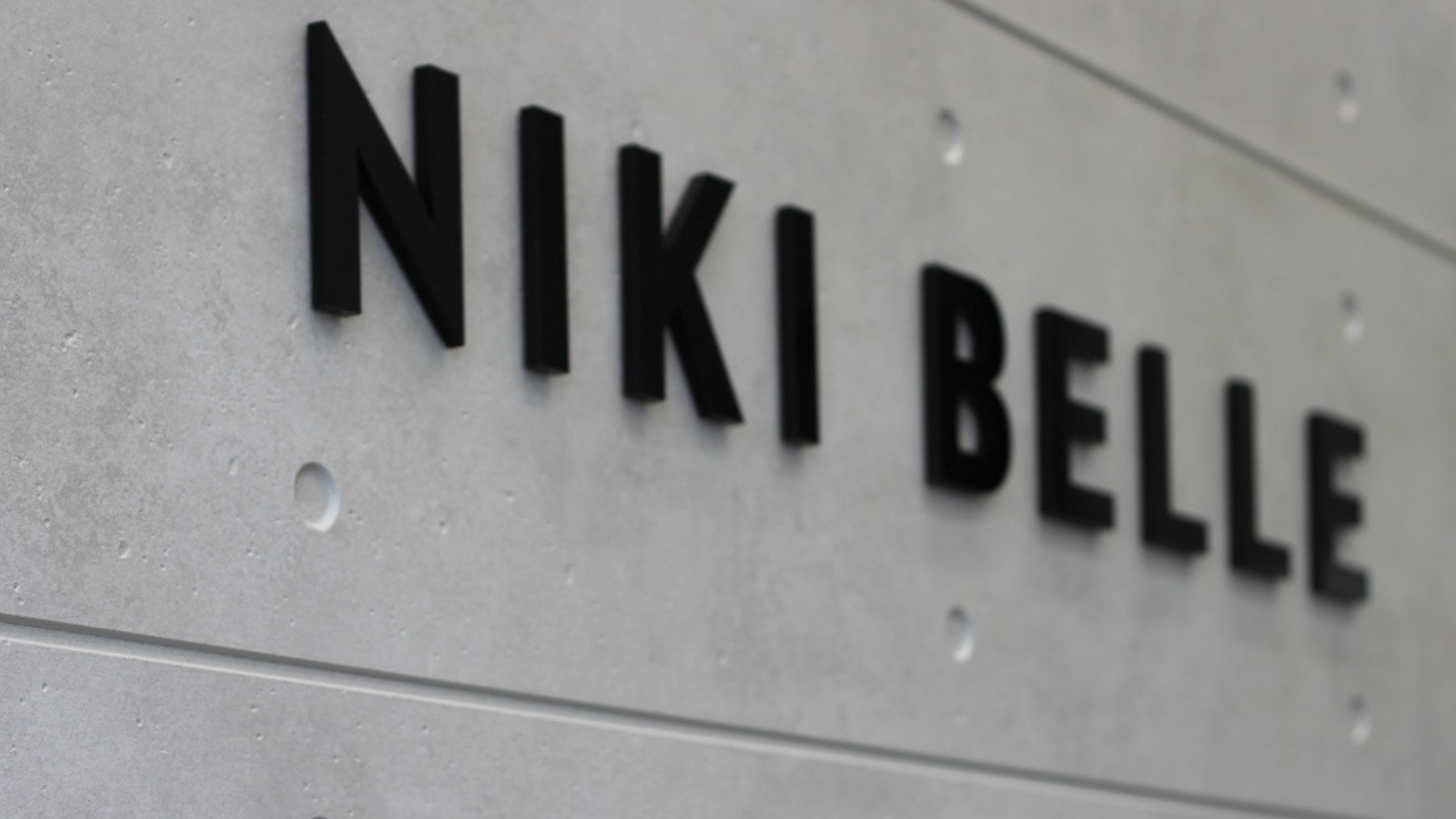

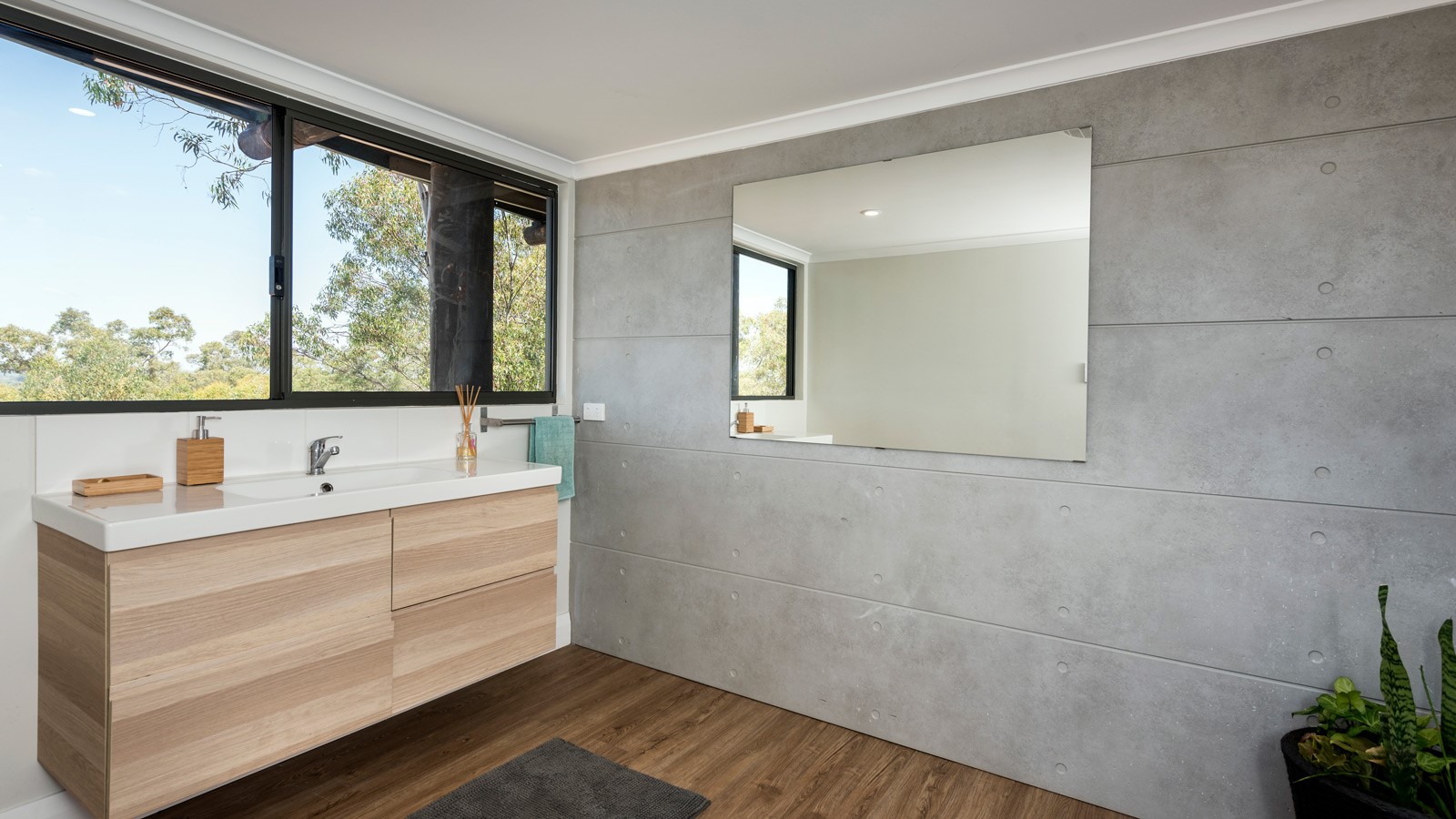

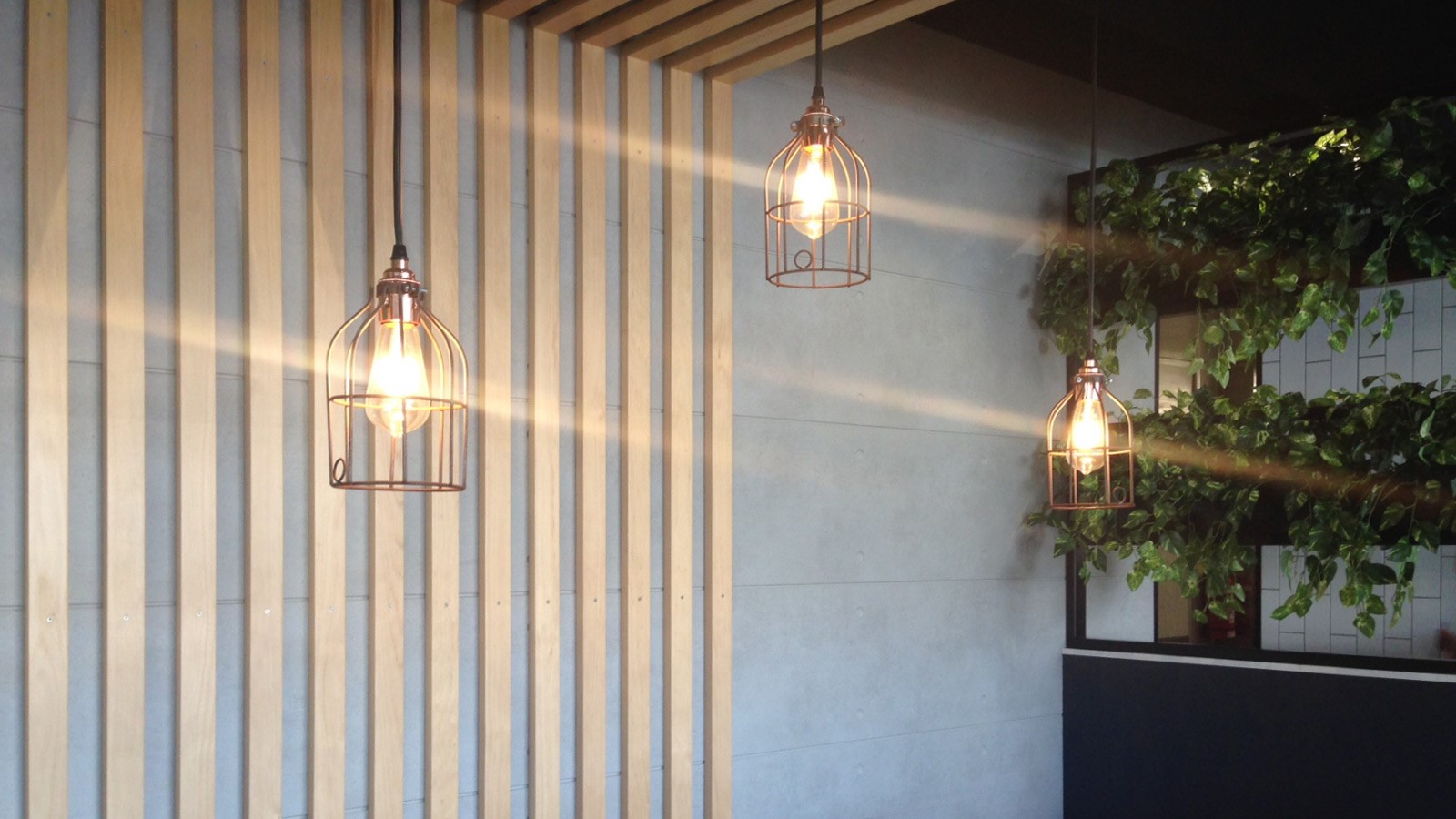

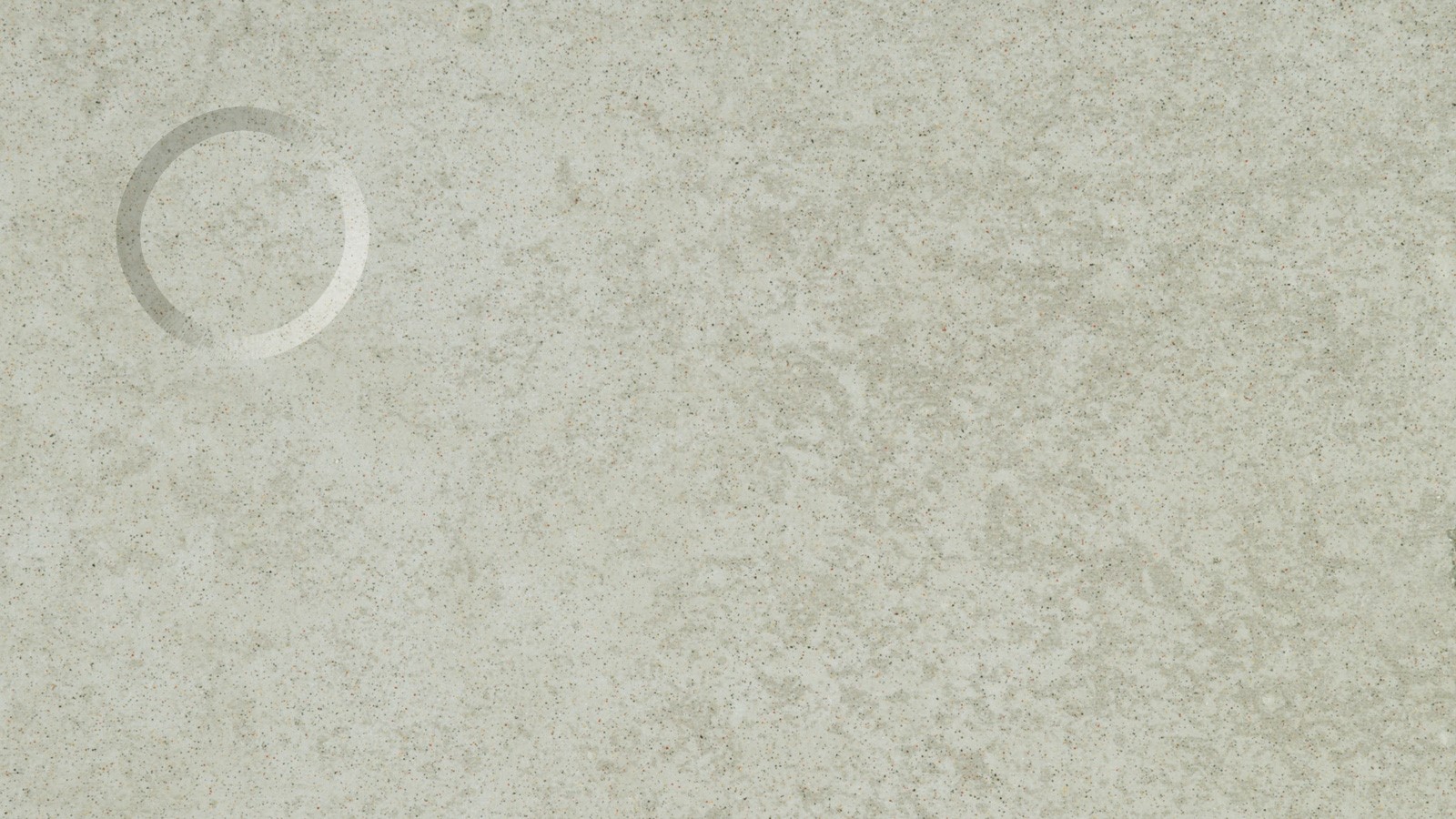

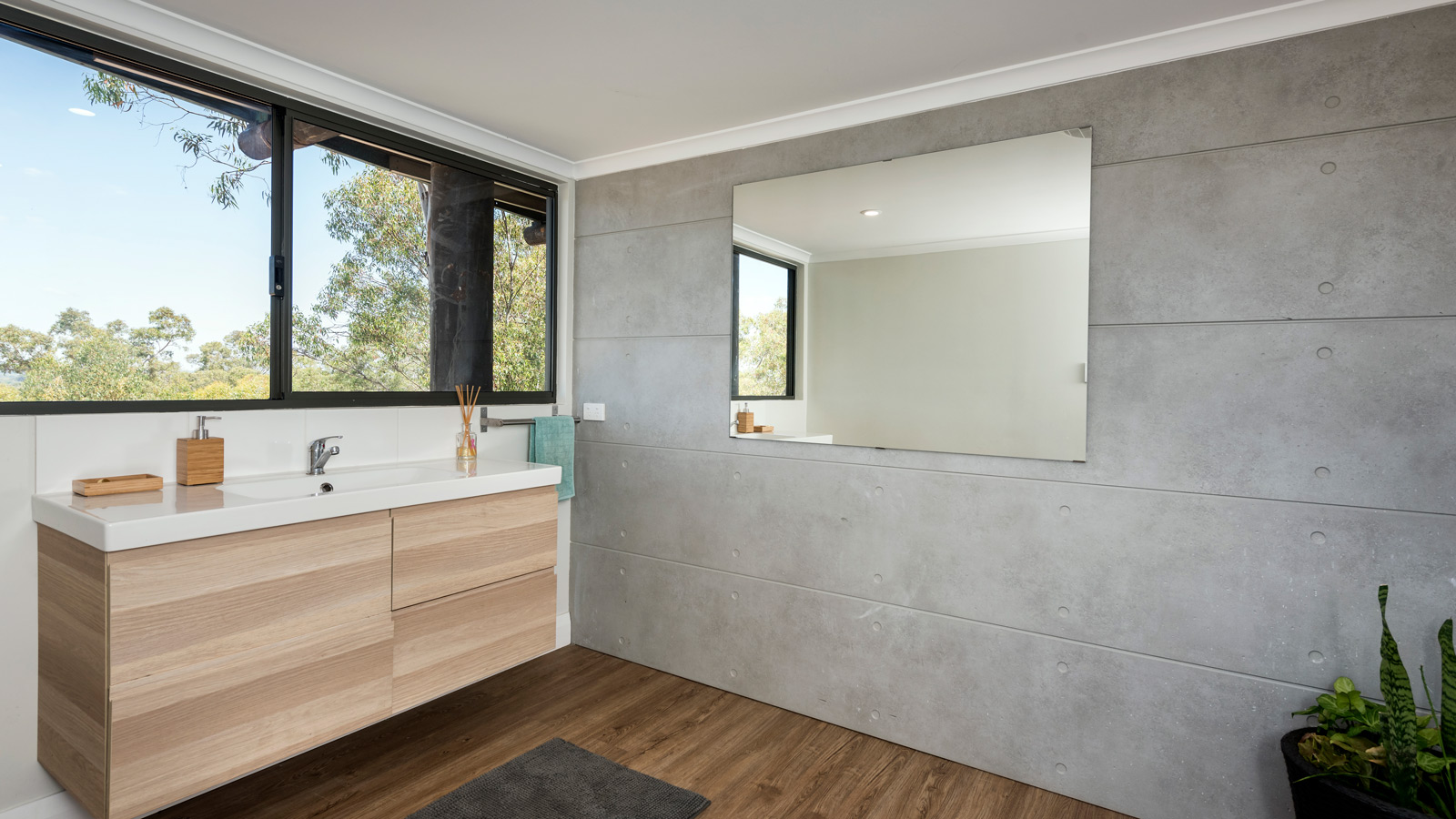

Urban Grey

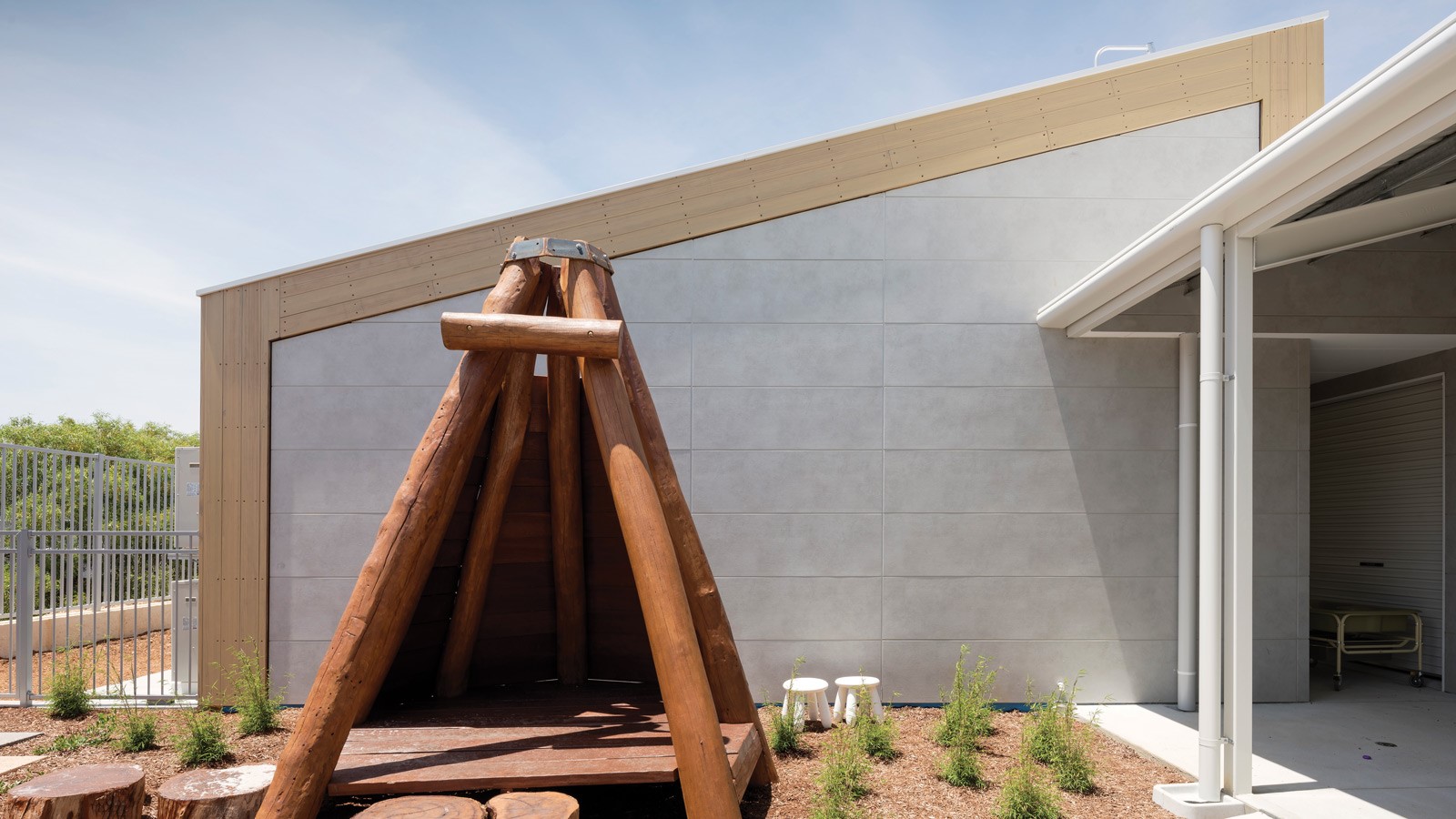

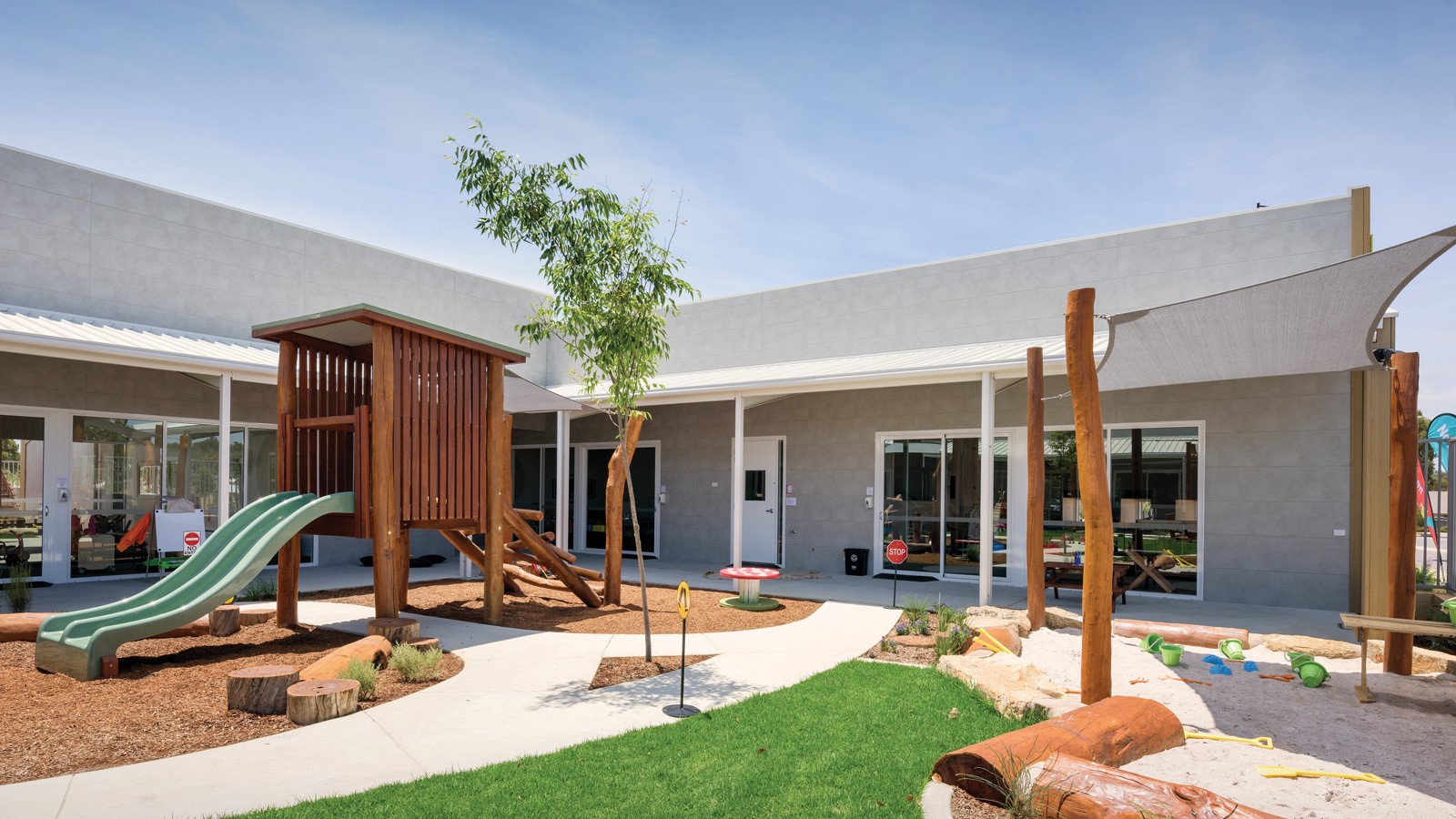

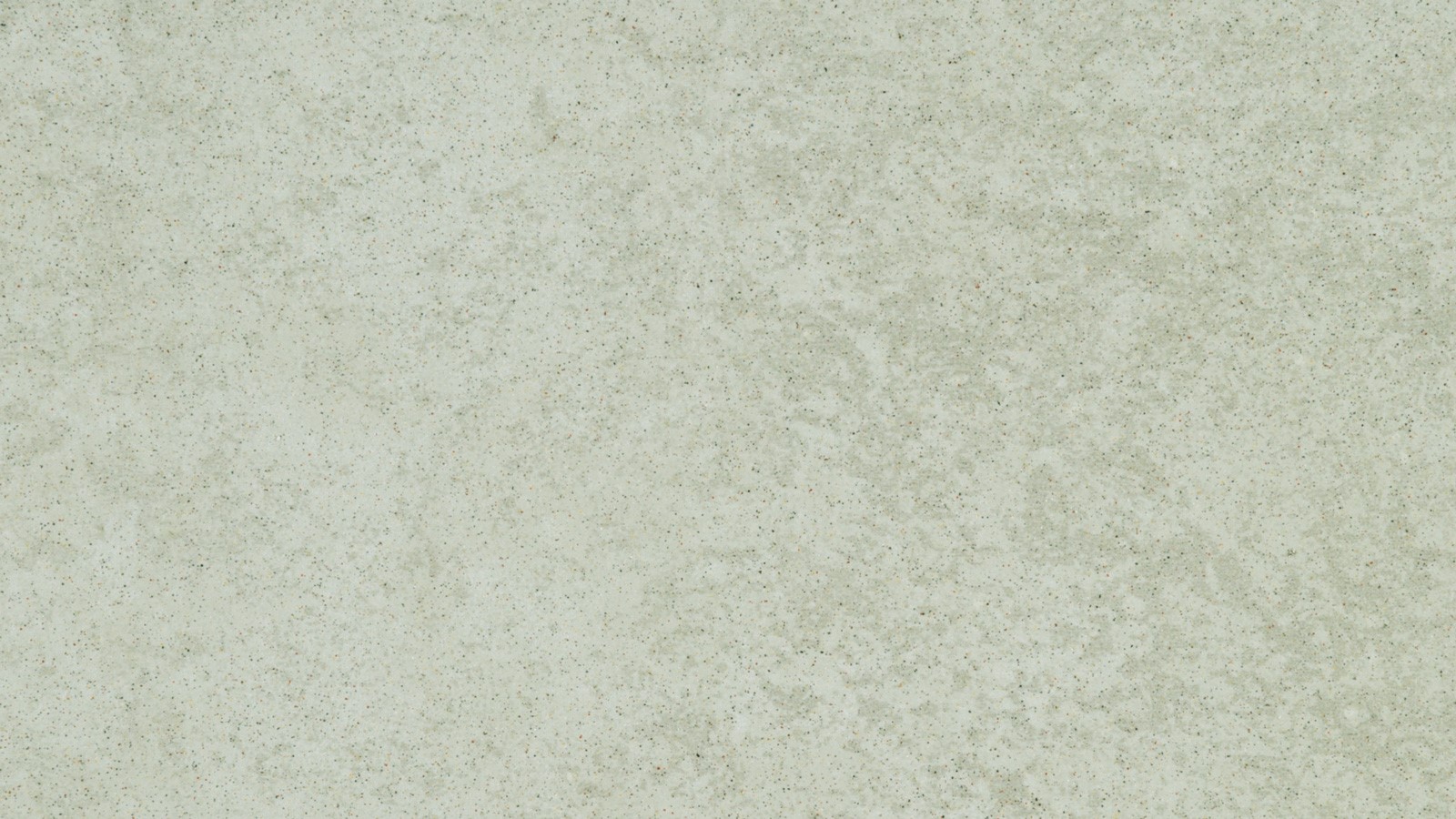

Concrete

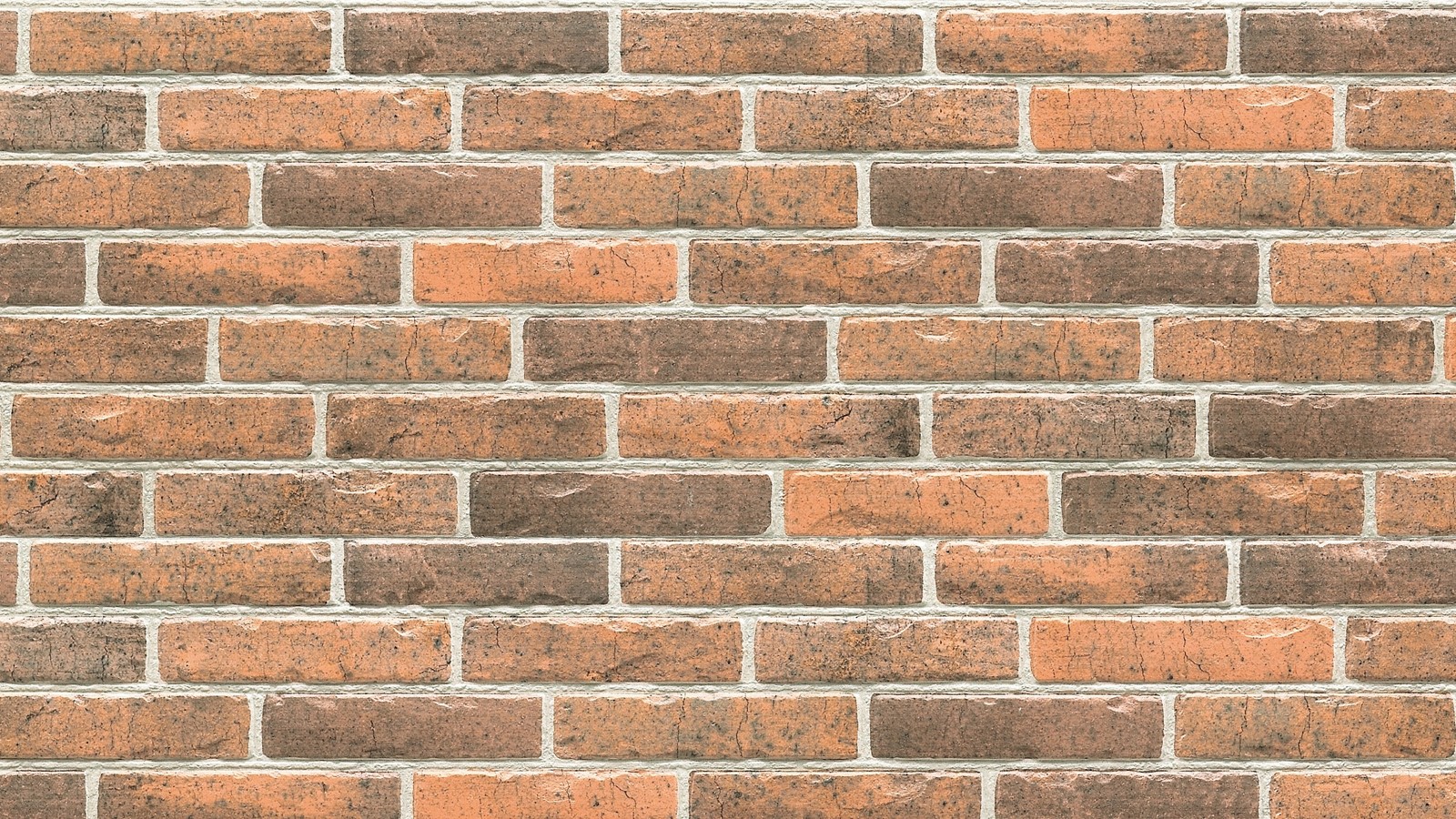

Mottled Rustic Brick

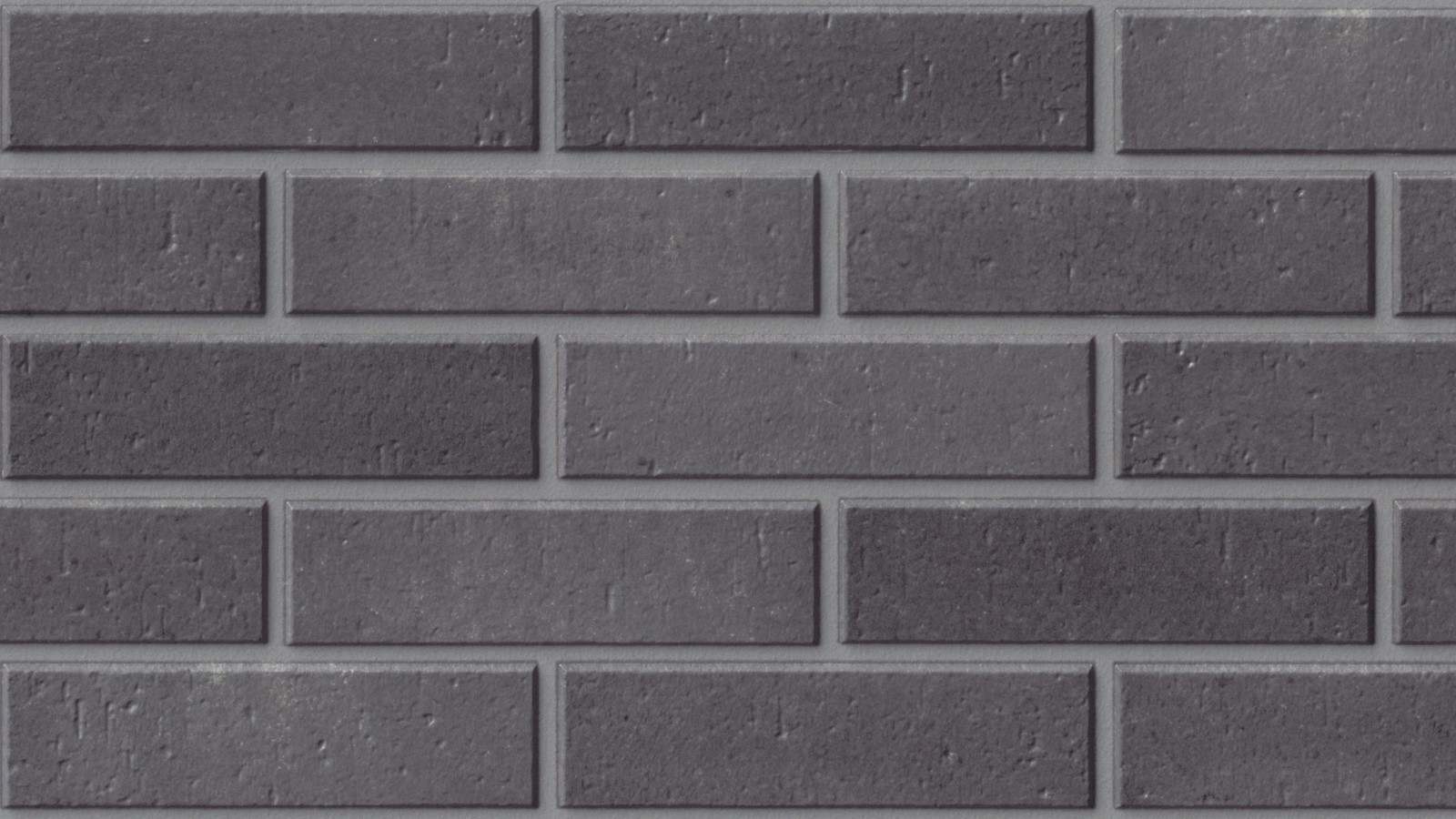

Black Modern Brick

Grey Rustic Brick

White Rustic Brick

Mosaic White

Mosaic Ivory

Mosaic Brown

The Territory range is classified AS 5113 EW (External Walls) for fire compliance. Find out more here.

Cemintel Territory™ is created for you - a natural cladding range that comes from Japanese values of simplicity, nature and quality. These prefinished cladding panels simulate materials like stone, timber, concrete, metal, tiles and smooth render in a sophisticated way to enhance building façades, without the ongoing maintenance.

Man-made, the excavations of a quarry supply the materials used for many building applications. Concrete is one of the most utilised products in the world and has its origins in a quarry. It is much loved in design because of its raw, unpretentious, malleable and functional properties.

Features

Prefinished and available in a variety of colours and simulated textures.
Minimal ongoing maintenance required.
Simple clip fixing system that goes together like Meccano® from the starter strip.
Provides a ventilated cavity to keep your building dry.
NichiGuard® stain resistant and self cleaning coating available on most panels^.
Platinum coating technology protects against UV damage and colour fade.
Machined with a complementary tongue and groove profile that easily fit together.
Compressible sealing strip factory bonded onto the tongue profile to form a weather resistant joint.
Choice of simple aluminium or colour matched, preformed corners.

^Not all products come with NichiGuard coating.

Façades & Cladding
Internal Linings

Case Studies

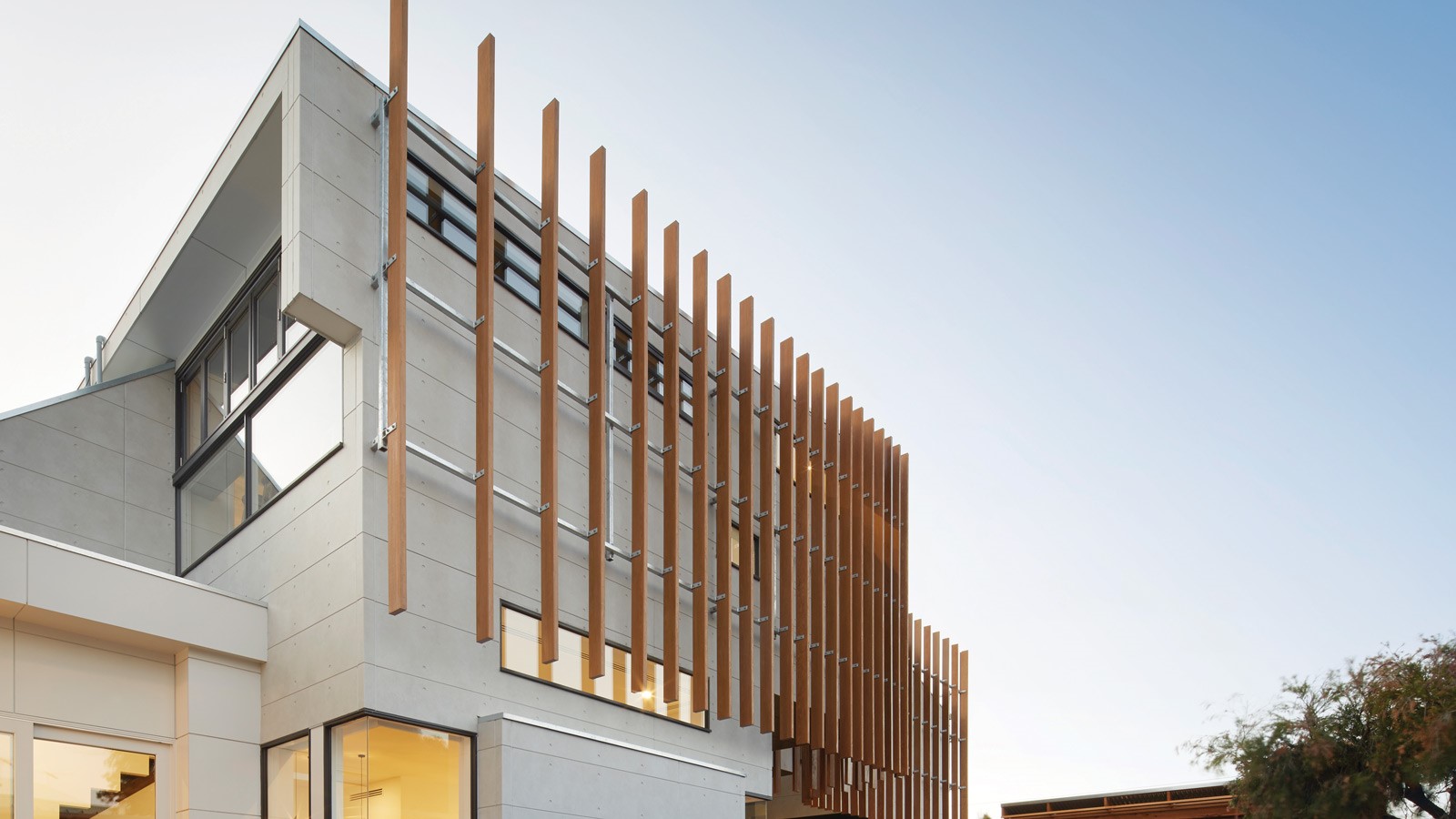

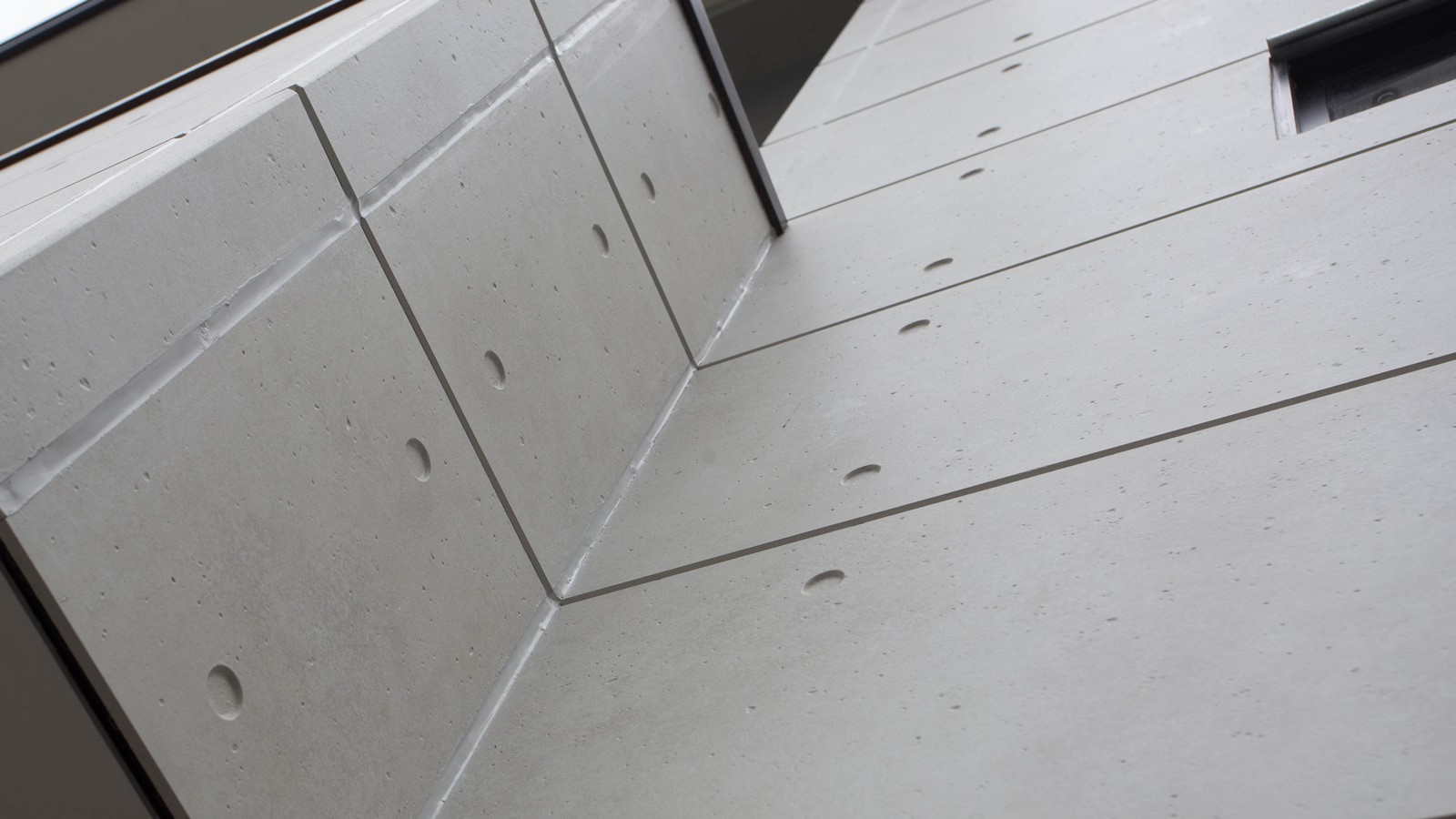

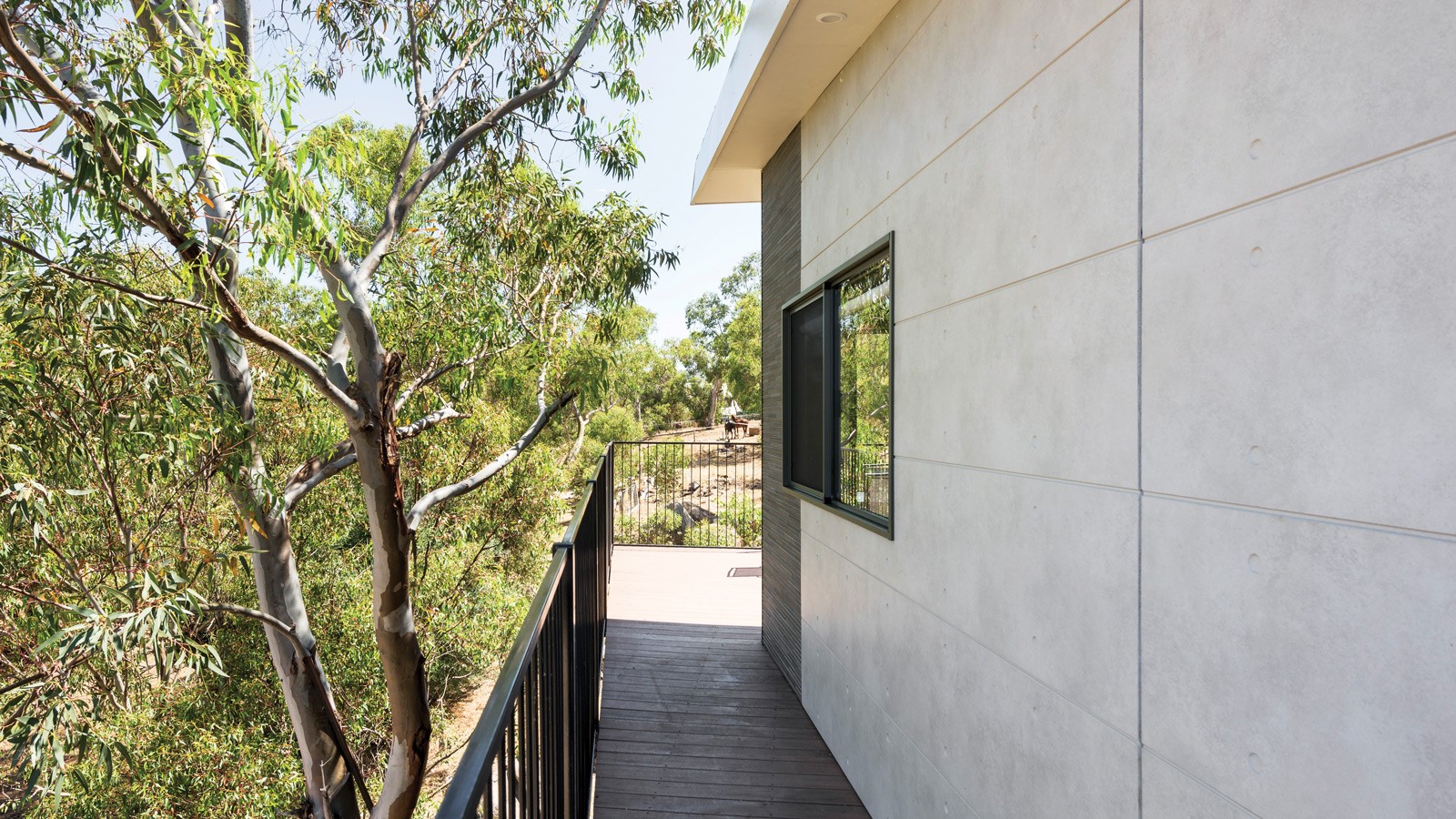

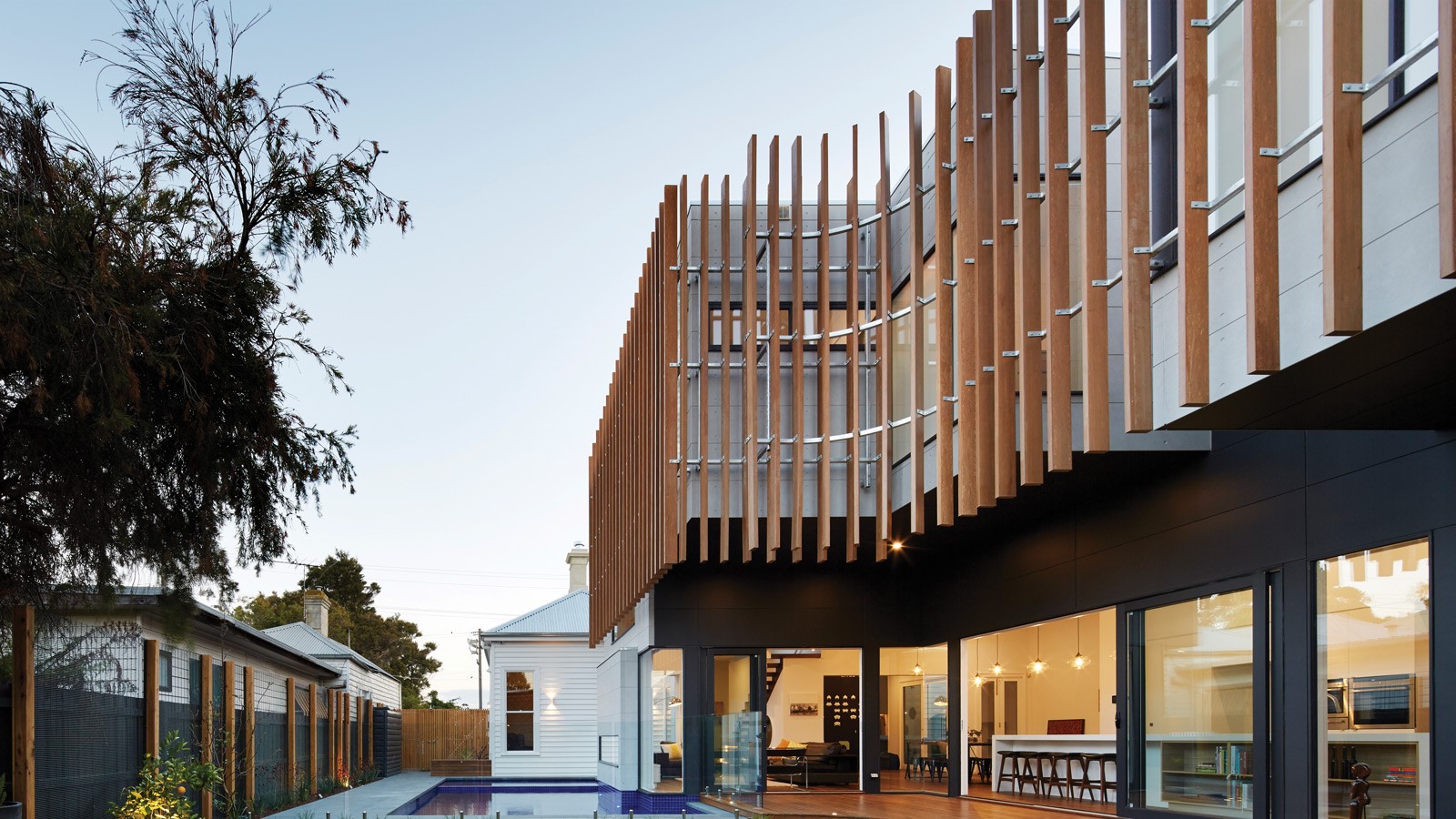

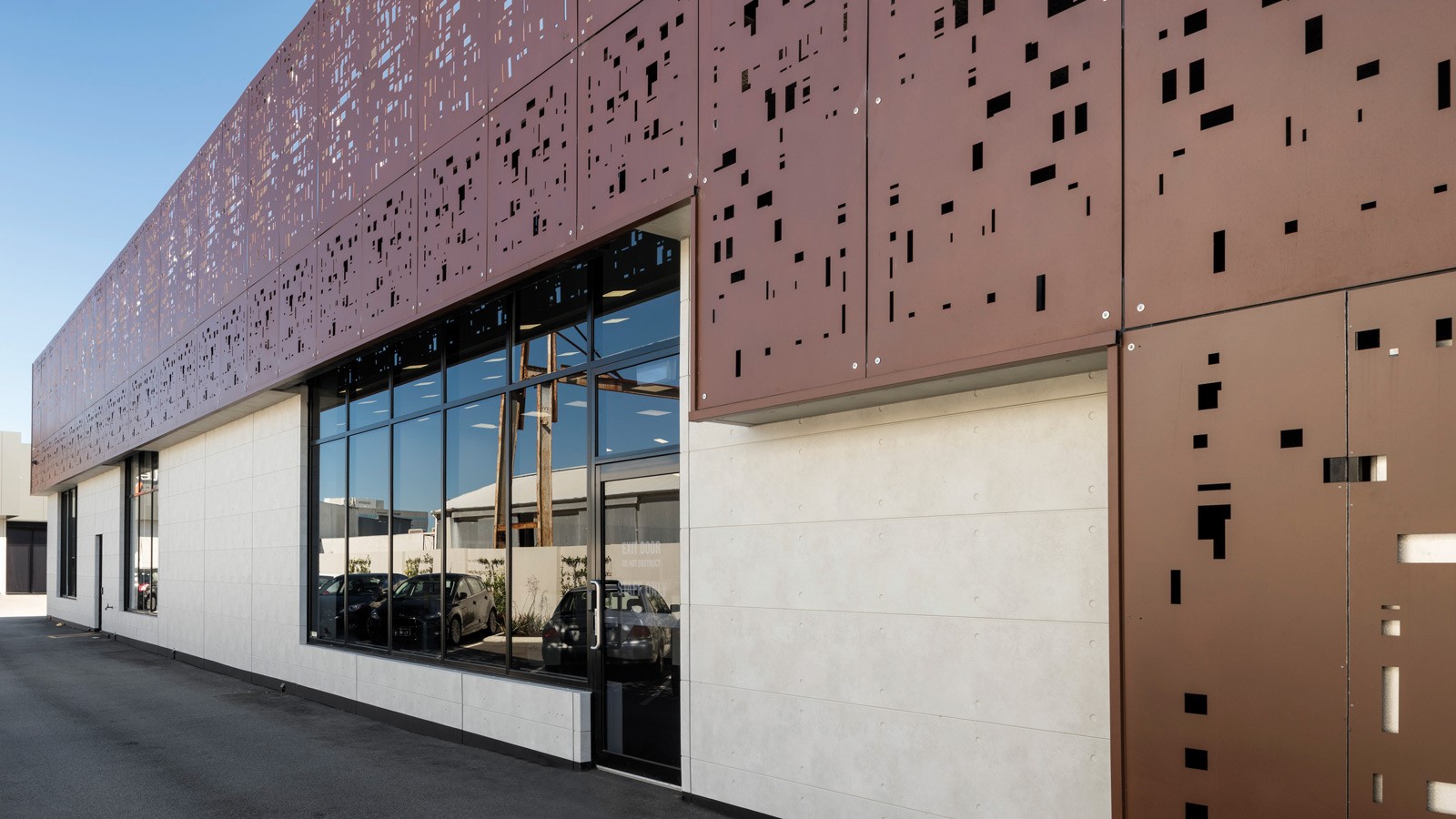

Osborne Street – Urban Grey

A high-value finish for Swan Valley work-life project

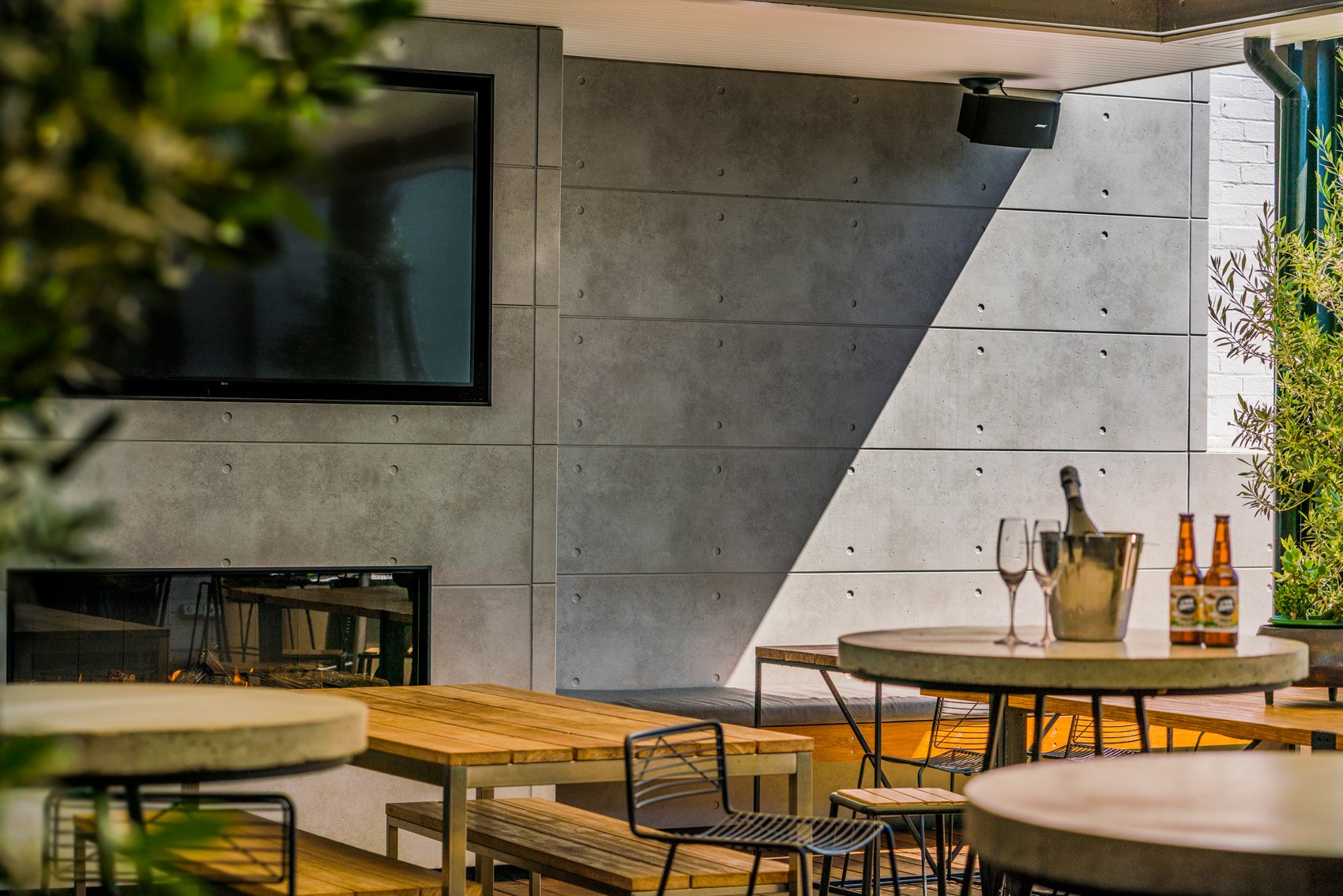

Iconic Brisbane pub gets a new lease on life

Downloads

Associated files for this Cemintel product are available for download.

Territory Range Brochure

PDF | 3.7MB

Territory Internal Design & Installation Guide

PDF | 11.3MB

Territory Warranty April 2024

PDF | 93.2KB

Fire Performance Guide - Fibre Cement Cladding

PDF | 3.3MB

Cemintel Product Portfolio

PDF | 16.0MB

Fibre Cement Safety Data Sheet

PDF | 715.8KB

CodeMark Certificate of Conformity

PDF | 326.4KB

Technical Data

Download

CEMINTEL TERRITORY™ PANELS ARE CEMENT BONDED FIBROUS WOOD PARTICLE CLADDING PRODUCTS THAT ARE PRESSED WITH SURFACE TEXTURE AND PREFINISHED USING A DURABLE MULTI-LAYER PAINT PROCESS TO ACHIEVE A RANGE OF TEXTURES, FINISHES AND DESIGNS. THE LONG HORIZONTAL EDGE OF THE PANEL IS MACHINED WITH A COMPLEMENTARY TONGUE AND GROOVE PROFILE AND A COMPRESSIBLE SEALING STRIP IS BONDED ONTO THE TONGUE WHICH ENABLES THE PANELS TO FIT NEATLY TOGETHER TO FORM A WEATHER RESISTANT JOINT.

Cemintel Territory panels are manufactured in Japan to the Japanese Industrial Standard JIS A 5422 (fibre reinforced cement sidings) and are classified as a Type A, Grade 2 (fibre cement) sheet in accordance with ASTM C1186.

APPLICATIONS

	Result
Applications	Façades & Cladding, Internal Linings
Type of Building Structure	Residential Housing Buildings within the scope of AS4055, Commercial & Other
Wet Areas	No

PANEL - DIMENSIONAL & GEOMETRICAL CHARACTERISTICS

Dimensional/Geometrical Characteristic	Specification	Manufacturing Tolerance	Relevant Standard
Panel Width	470mm (overall width), 455mm (effective cover)	+/- 1mm	JIS A 5422
Panel Length	3030mm	+/- 1mm	JIS A 5422
Panel Thickness	16mm	+/- 1.2mm	JIS A 5422
Profile	Tongue & Groove
Perpendicularity/squareness of edges
Weight (typical)	17.9 - 21.8kg/m2 Based on dry weight. 24.6kg to 30kg per sheet (or 17.9 to 21.8kg per m2) depending on sheet design (NB 2 x panels per pack)
Layout Options	Horizontal, Vertical (NB not all panels have matching preformed vertical corners - check Design and Installation Guide for details)
Jointing	Concealed

PANEL - STRENGTH & MOISTURE RELATED PROPERTIES

Physical Property	Result	Relevant Standard
Modulus of Rupture (Wet)	> 7 Mpa	ASTM C 1186
Modulus of Elasticity (Wet)	2.2 - 3.35 Gpa	EN 12467
Density (Oven Dry)	1191Kg/m3 (average)	ASTM C 1186
Water Vapor Diffusion
Water Tightness (24hrs)	No water droplet	ASTM C 1186
Water Absorption (Saturated – 48hrs)	13.9% (average)	ASTM C 1186
Moisture Content (EMC)	7-9%	ASTM C 1186
Moisture Movement	0.07% (average)	ASTM C 1186

NB/ The above test results relate to coated panels unless otherwise specified (ie edges are sealed for testing to reflect the characteristic of sheets as delivered & in accordance with installation instructions). In-house testing as per ASTM C 1186.

PANEL - OTHER DURABILITY/WEATHER RESISTANCE INDICATORS

Test	Result	Relevant Standard
Heat Rain	PASSED (25 Cycles)	ASTM C 1186
Freeze Thaw	PASSED (50 Cycles)	ASTM C 1186
Warm Water Resistance	PASSED (56 days)	ASTM C 1186
Soak Dry	PASSED (50 Cycles)	EN 12467

PANEL - FINISH CHARACTERISTICS

Characteristic	Result	Relevant Standard
Finish	Prefinished
Coating Type	Nichiguard Coating - applied to all panels with the exception of Savanna Mist and Savanna Shade. Provides an anti-staining, self cleaning function. Silica particles in the coating attract water from the atmosphere to form a thin molecular film, so that airborne contaminants do not reach the panel surface itself. Rain water that runs down the wall washes contaminants away. (Platinum Coating)
Colour Bodied	No
Paint Type	Silicon Acrylic Emulsion
UV Resistance	N/A	N/A
Formaldehyde Emission Rate	Meets Green Building Council Office Design IEQ-14 Requirements for <0.1mg/m2/hr* *Refers to results obtained for Woodlands Teak	ASTM D5116
VOC Emission Rate	Meets Green Building Council Office Design IEQ-14 Requirements for <0.5mg/m2/hr* *Refers to results obtained for Woodlands Teak	ASTM D5116

Spectral Reflectivity Values	Solar Reflectance %	Solar Absorption %	Basix Colour	Relevant Standard
Quarry Urban Grey	36.7	63.3 ±1.9	Medium	ASTME 903-12
Quarry Concrete	35.6	64.4 ±1.1	Medium	ASTME 903-12
Quarry Mottled Rustic Brick
Quarry Black Modern Brick
Quarry Grey Rustic Brick
Quarry White Rustic Brick
Quarry Mosaic White
Quarry Mosaic Ivory
Quarry Mosaic Brown

PANEL - FIRE RESISTANCE, THERMAL & ACCOUSTIC PROPERTIES

Characteristic	Result	Relevant Standard
FIRE RESISTANCE
Combustibility	Suitable for use in applications where non-combustible materials are specified by the Deemed to Satisfy Provisions of the 2016 BCA Vol 1 Amendment 1 Clause C1.9 (2015 BCA Vol Clause C1.12)
Fire Hazard Properties	Group 1 Av Specific Extinction Area <250	AS 5637.1
Classification	1	AS/NZ 3837
THERMAL CONDUCTIVITY
Thermal Conductivity (λ-Factor)	0.26 W/mk (average)	JIS A 1412
Thermal Expansion Co-efficient		N/A
ACOUSTIC VALUE
Sound reduction (depends on construction)	N/A	N/A

SYSTEM SOLUTIONS

Characteristic	Result	Relevant Standard
Within Scope of AS4055?	Yes
Wind Loading - Residential housing buildings within the scope of AS4055	N1, N2, N3, N4, N5 (horizontal), N6 (horizontal), C1, C2, C3 (horizontal), C4 (horizontal steel frame only)
Weatherproofing	When installed horizontally - has passed testing at a serviceability wind pressure of +3.72kPa and -3.72kPa, and an ultimate wind pressure of +6kPa and -6kPa. When installed vertically – has passed testing at a serviceability wind pressure of +1.6kPa and -2.2kPa, and an ultimate wind pressure of +2.6kPa and -3.3kPa.	AS 4284
Cyclonic Conditions	Horizontal installation/ tested which passed at 4.5kPa (using long clip) and 2.7kPa (using short clip).	AS 4040.3
Fire Resistance Limits (FRLs)	Up to 90/90/90	Refer to Gyprock® The Red Book™
Bushfire Construction	BAL 40 (Construction for Bushfire Attack Level 40 for an external wall)	AS 1530.8.1
Acoustic	Acoustic solutions of up to RW/RW+CTR 52/43 are detailed	Refer to Gyprock® The Red Book™
Thermal	Thermal solutions of up to RT(sum)/RT(win) 2.8/3 are detailed	Refer to Gyprock® The Red Book™

FIXING

Characteristic
Maximum Span (Stud Spacing)	Up to 600mm
DIRECT FIX
Nail to Timber Frame	No
Screw to Timber Frame	No
Screw to Steel Frame	No
INDIRECT FIX
Timber Frame	Yes
Steel Frame	Yes
Masonry Frame	Yes
EXPOSED FASTENERS
Screw	Yes (limited)
Rivet	No
Nail	Yes (limited)
CONCEALED FASTENERS
Clip	Yes
Countersunk Screw/Nail	No
Adhesive, Split Batten, etc.	No
Hidden by Overlapping Panel	No
Flush Jointed (Taped)	No

WARRANTY 15 Years
