Texture Base Sheet

Key Features

Coated with a blue pigmented sealer that uses Ceminseal® water block technology on the sheet face and edges.

Recessed edges for flush jointing are 35mm long and 2mm deep and are on the long sides only.

Designed specifically to accept site-applied texture coatings.

Ideal for New Zealand’s varied climates, the sheets are resistant to moisture, rotting and warping.

The Texture Base Sheet is Cemintel®’s blue board product for creating a rendered texture on exterior walls. It’s a 7.5mm fibre cement sheet, with recessed edges for flush jointed external walls. The cement sheets have a coating of blue primer, which is why they’re called blue board.

Texture Base Sheets are generally used on upper stories, cantilevered features and above long span openings like garage doors. The cement sheets are used in places that require a jointless render texture aesthetic and where it’s impractical to construct and support a heavy rendered masonry wall.

Explore Texture Base Sheet

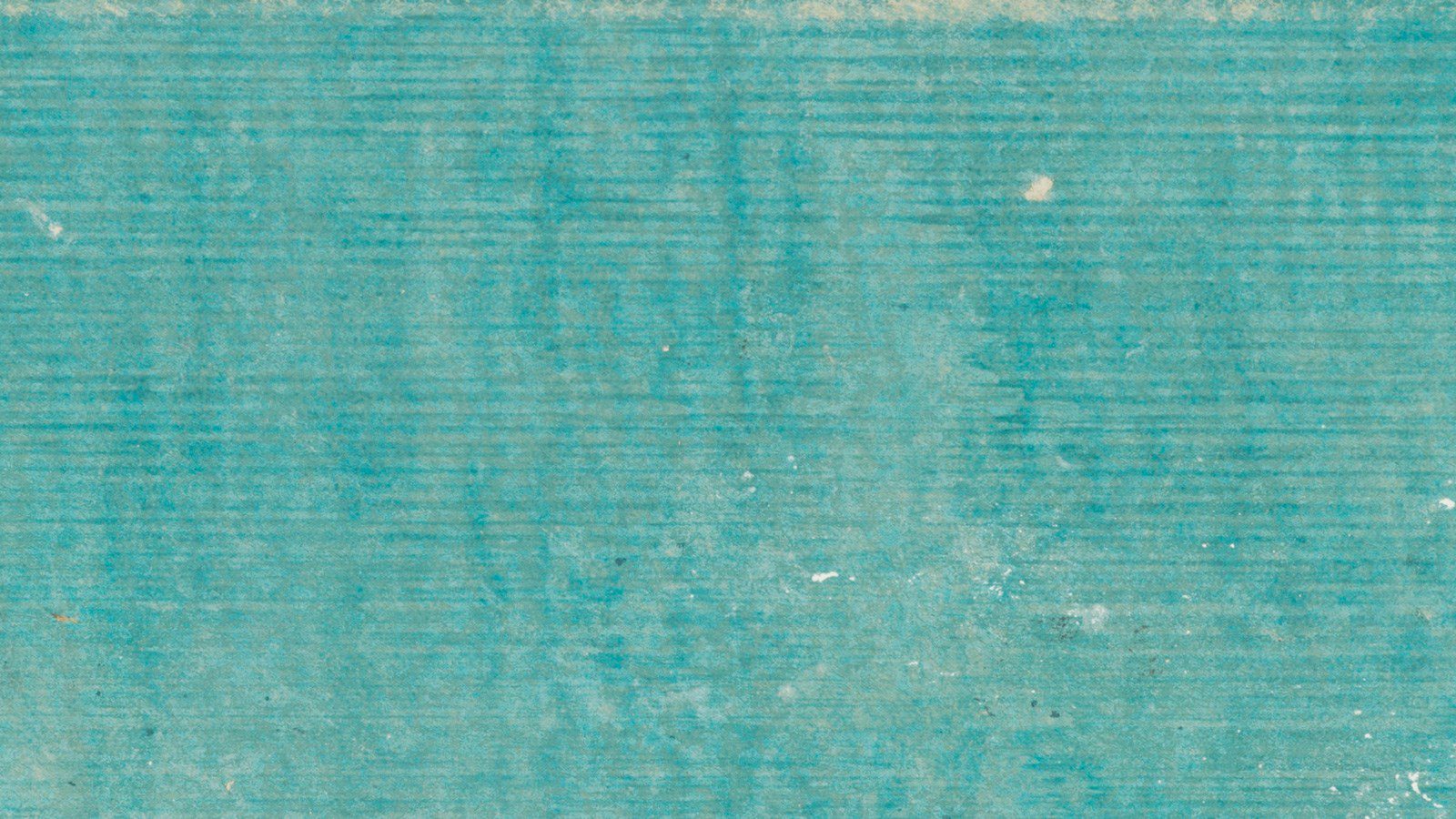

A textured teal surface with subtle horizontal and vertical lines. The color appears slightly faded and worn in certain areas, giving it a distressed, vintage look. Small specks and imperfections are scattered across the surface.

Texture Base Sheet

Texture Base Sheet

Disclaimer: Product images and samples may vary from actual product regarding colour and surface finish due to the manufacturing process and raw materials used.

Technical Information

Download Technical Data Sheet

Texture Base Sheet Panel Information

The Cemintel Texture Base Sheet is a key component when constructing a lightweight rendered wall. When properly installed using the proprietary jointing, framing and coating system, Cemintel Texture Base Sheets enable the creation of a seamless, weather resistant facades. These are ideal for timber and steel framed construction. They can be direct fixed or cavity fixed to create a ventilated and drained cavity system.

The Texture Base Sheet cladding system essentially covers the exterior walls of a building and is a key component in providing weather resistance, acoustic, thermal and fire resisting performance.

The lightweight properties of fibre cement; toughness, durability and moisture damage resistance, combined with the wide range of textured and coloured coating options available, make the product ideal for both new construction and renovation additions to existing buildings.

This pre-primed base sheet is typically installed vertically and is suitable for use in exterior wall applications where non-combustible materials are required in accordance with the New Zealand Building Code Clause C3.5 and Acceptable Solution C/AS2.

Texture Coating Recommendations

Cemintel recommends that the joint system and texture coat used are supplied by the same manufacturer to ensure compatibility of materials.
Usually, suitable coating systems are 100% acrylic, high performance, elastomeric membrane waterproofing coatings.
